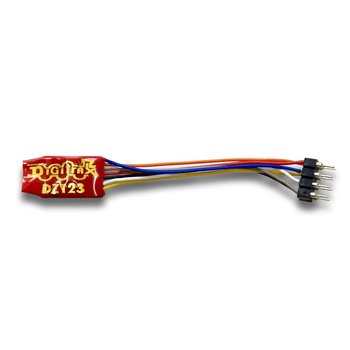

Digitrax DZ123PS 1 Amp Economy Mobile Decoder, 2 Functions, DCC Medium Plug on Short Harness

DZ123PS 1 Amp Economy Mobile Decoder, 2 Functions, DCC Medium Plug on Short Harness

Digitrax LocoMotion^® System
Your locomotives look like the real thing. The Digitrax LocoMotion™ System makes them run like the real thing, too!

• • Torque Compensation for smooth as silk silent operation.


  • 128 Speed Step operation (14 or 28 steps can also be used).


  • Momentum with acceleration and deceleration.


  • Normal Direction of Travel is user selectable.


  • Switching Speed feature for easier and faster access to yard speeds.


  • 3 Step Speed Tables set start, mid and max voltage for custom control.


  • 28 Step Speed Tables with 256 level resolution for precise control.


  • SuperSonic™ motor drive for silent operation.


  • FX³ Function outputs for prototypical lighting effects and on/off control.


  • Constant Brightness Lighting with directional or independent control.


  • Realistic Effects like Ditch lights, Mars lights, strobes, and many more.


  • FX³ & Standard Function Qualifiers operate functions based on direction,
    F0 on or off, direction and F0, and whether loco is moving.


  • Function Remapping for custom function setup.


  • Master Light Switch turns off all lights & functions with one keystroke.


  • Decoder Lock equipped




  • Transponder equipped ready for transponding on your layout.

  • All Mode Programming with Operations Mode Read Back reads back CV values right on the mainline.

  • Decoder Reset CV with or without speed table reset.

  • Motor Isolation Protection prevents damage to your decoder.

  • Basic, Advanced & UniVersal Consisting

  • 2 Digit and 4 Digit Addressing

  • Works with most DCC-ready Z, N, and HO scale locomotives up to 18V track voltage

  • DCC Compatible

  • FCC Part 15, Class B RFI compliant

  Specifications

  Current Rating-Motor

  1.0 Amp (2.0 Amps Peak)

  Size

  0.36” x 0.55 x 0.13” (9.8mm x 14.5mm x 3.2mm)

  Installation

  DCC Medium plug on 1.2" (30mm) wire harness

  Function Outputs

  2-500mA

  Function Type

  FX3 (read more)

  Features

  Economy Series 3 (read more)

  Warranty

  No Worries Warranty (read more)
