Digitrax

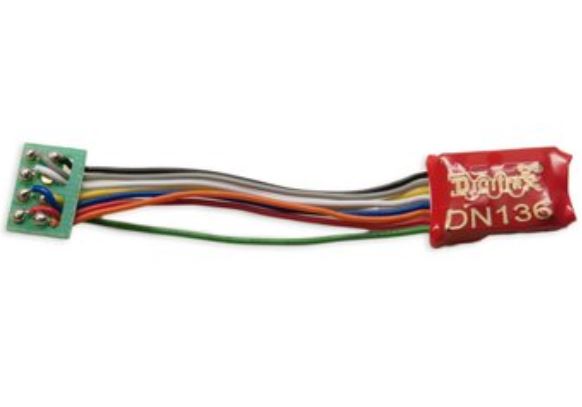

Digitrax DN136PS 1 Amp N/HO Scale Mobile Decoder with Short 8 pin Harness

Digitrax DN136PS 1 Amp N/HO Scale Mobile Decoder with Short 8 pin Harness

Regular price $59.95 AUD
Regular price Sale price $59.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

DN136PS - 1 Amp N/HO Scale Mobile Decoder with Short 8 pin Harness

Fits Many N/HO Locomotives with 8 pin Medium Socket

  • Size: .55” x .404” x .2”
    13.9mm x 10.3mm x 5 mm
  • N/HO Scale
  • Digitrax Easy Connect 8 Pin Harness
  • 1.0 Amp/1.5 Amps Peak
  • 3 FX3 Functions, 0.5 Amp

Product Features:

  • FX3 Function outputs for prototypical lighting effects and on/off control:
    Constant Brightness Lighting with directional or independent control.
    Optimized selectable LED or incandescent lamp operation
    Realistic Effects like Ditch lights, Mars lights, strobes, and many more
    Configurable Pulse Function available on all function outputs.
    FX3 & Standard Function Qualifiers operate functions based on direction,
    F0 on or off, direction and F0, and whether loco is moving.
    Function Mapping for custom function setup.
    Master Light Switch turns off all lights & functions with one keystroke.
    Advanced Consist Function Controls.
  • Digitrax LocoMotion® System-Your locomotives look like the real thing.
    The Digitrax LocoMotion System makes them run like the real thing, too!
    Scaleable Speed Stabilization (Back EMF) with simple setup & 256 level resolution.
    Torque Compensation.
    128 Speed Step operation (14 or 28 steps can also be used).
    Momentum with acceleration and deceleration.
    Normal Direction of Travel is user selectable.
    Switching Speed feature for easier and faster access to yard speeds.
    3 Step Speed Tables set start, mid and max voltage for custom control.
    28 Step Speed Tables with 256 level resolution for precise control.
  • Program CVs using any Digitrax Compatible Control system without havingto buy any extra equipment.
  • Digitrax Easy Connect 8 Pin Plug to 8 pin medium plug for Track, Motor and Function Control.
  • 2 Digit and 4 Digit Addressing.
  • Basic, Advanced & UniVersal Consisting.
  • SuperSonic motor drive for silent operation.
  • Direct mode programming.
  • Decoder Reset CV with or without speed table reset.
  • Transponder Equipped ready for transponding on your Layout.
  • Motor Isolation Protection helps prevent damage to your decoder.
  • Automatic Analog Mode Conversion when running on DC layout.
  • Decoder Lock for individual programming of multiple decoders in one loco.
  • Digitrax “No Worries” Warranty.



Specifications

Current Rating-Motor             1.0 Amp/1.5 Amps Peak
Size                                         0.55” x 0.404” x 0.2” (13.9mm x 10.3mm x 5 mm)
Installation                             DCC Medium Plug Short Harness (read more)
Function Outputs                   3 (read more)
Function Type                        FX3 (read more)
Features                                 Series 6 (read more)
Current Rating-Functions      0.5 Amp for all functions
Original Release Date             2014-03-14
Warranty                                 No Worries Warranty (read more)
