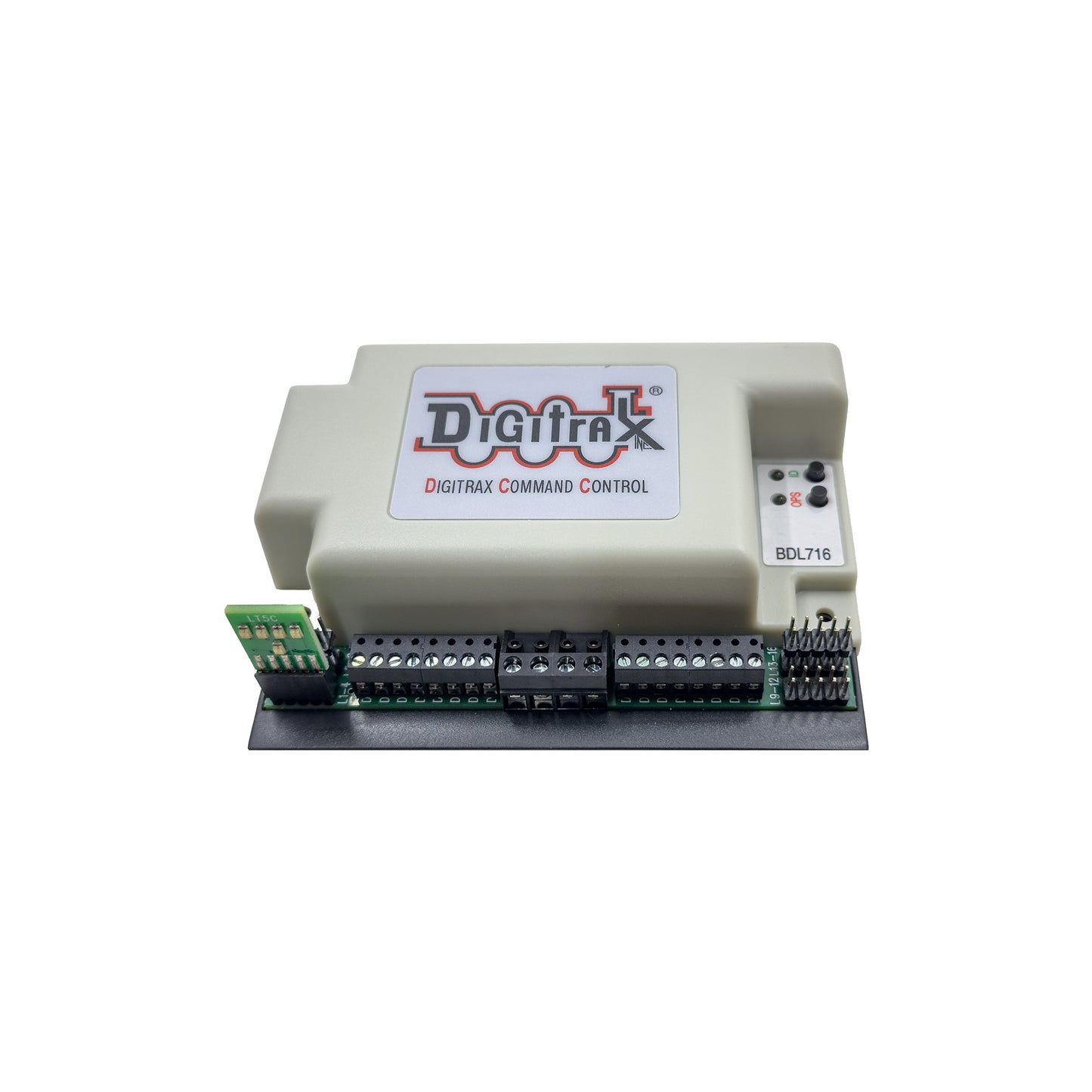

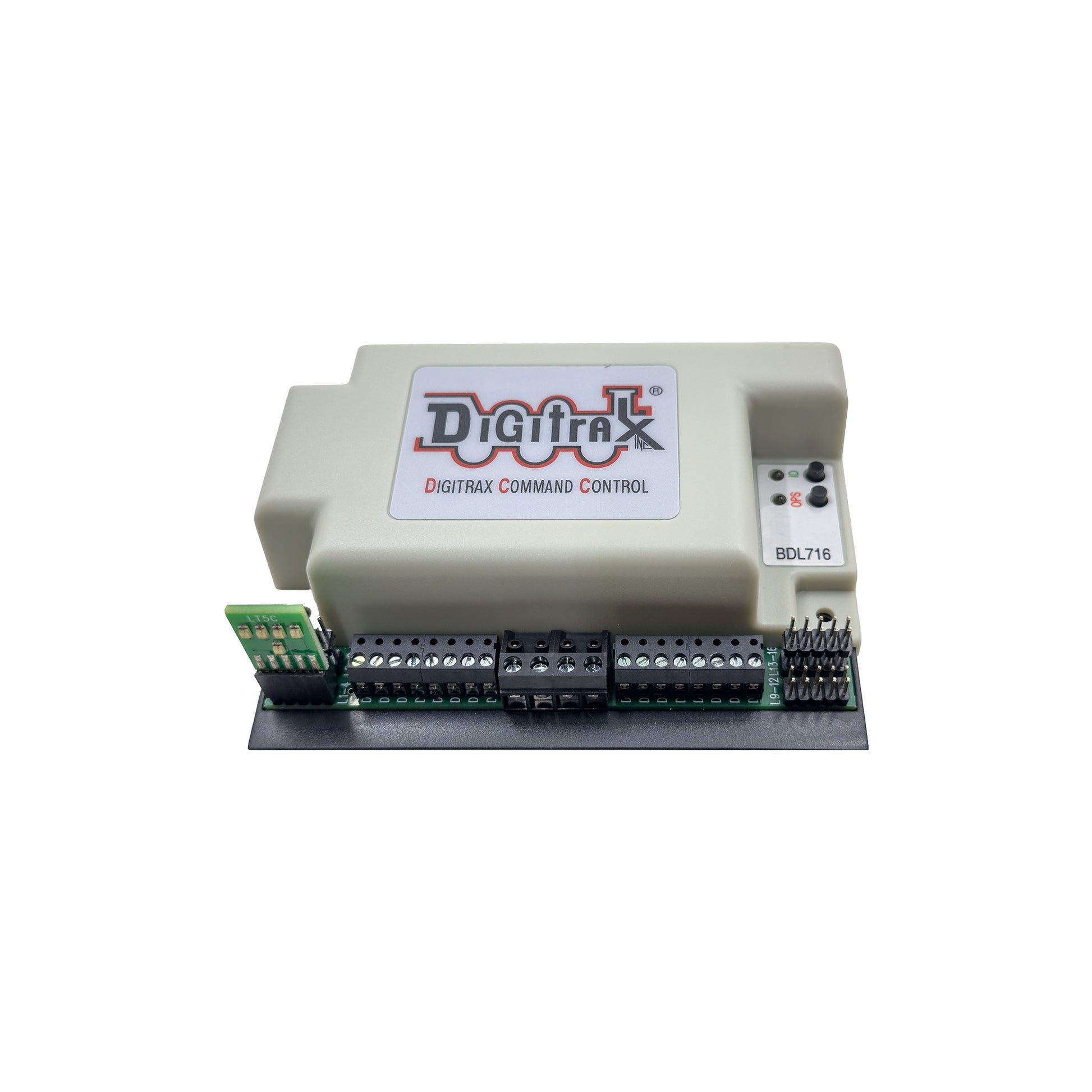

Digitrax BDL716 Block Detector

BDL716 - LocoNet Block Detector
Replacing BDL168

• All plug-in connectors for simple and easy installation and service.
• User defined as 16 DS reporting addresses in 1 to 2000+ DS range.
• Easy setup with device Option Switches (OPSW)
• Powered by 2mm DC jack, 8V min to 22V max.

• Configured to operate with DCC booster power from; DCS52,
DCS100, DCS210, DCS210+, DCS240, DCS240+ Command Stations,
DB210 and DB220 boosters.
• Can split into two 8-DS areas to operate from two separate boosters.
• Optional Detection and Power status led connector for remote state
indication, compatible with e.g. LT5C.
